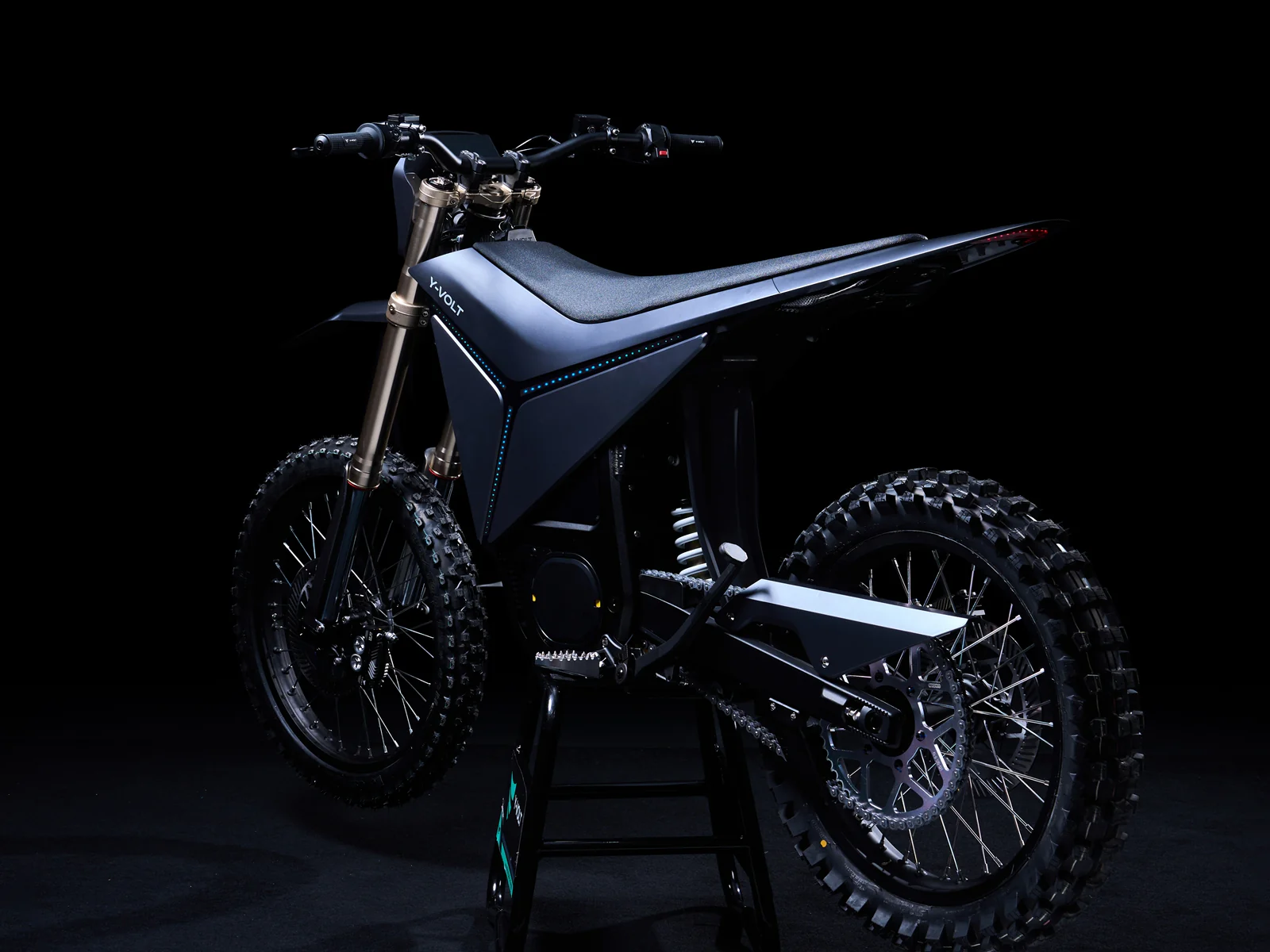

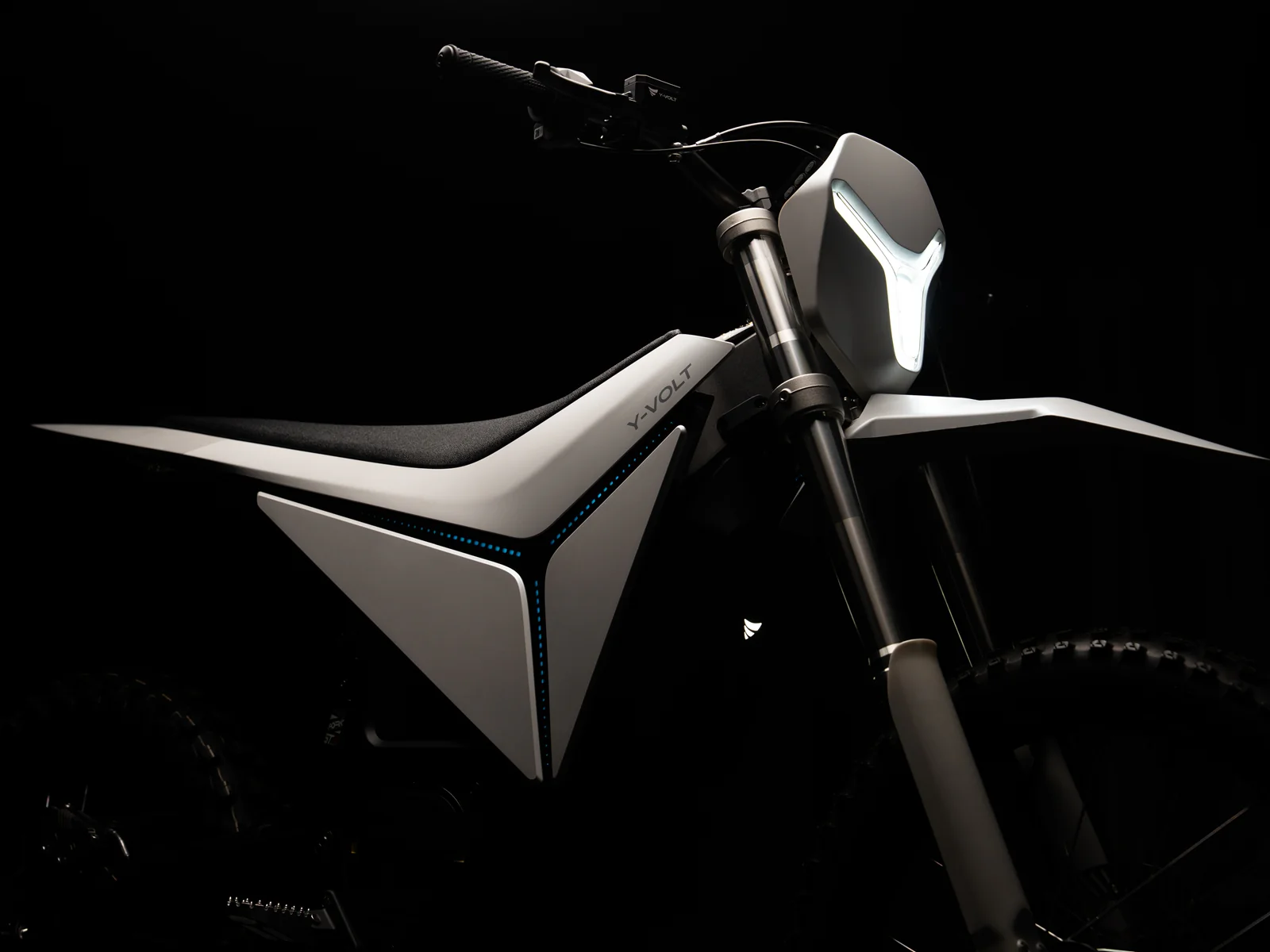

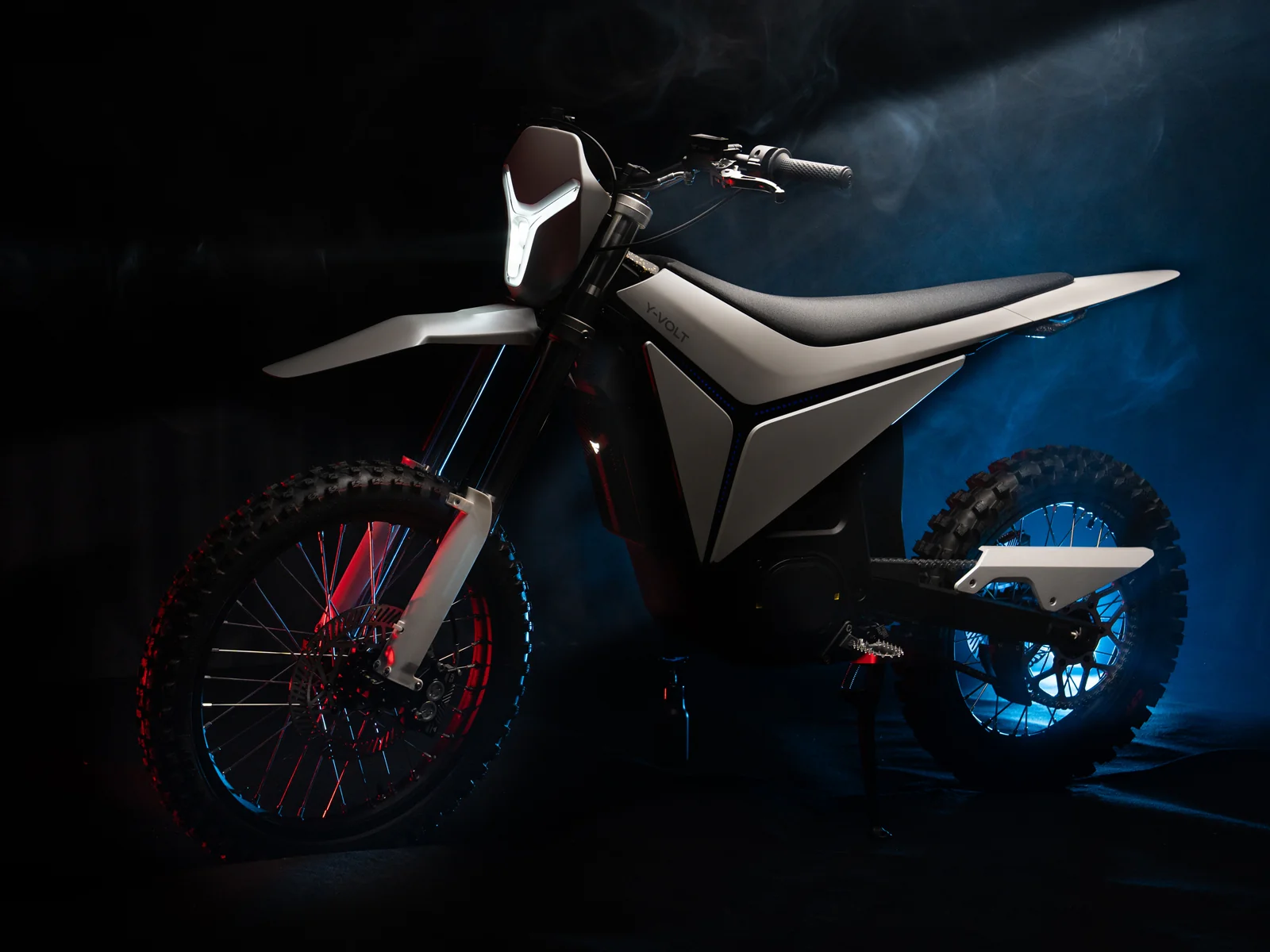

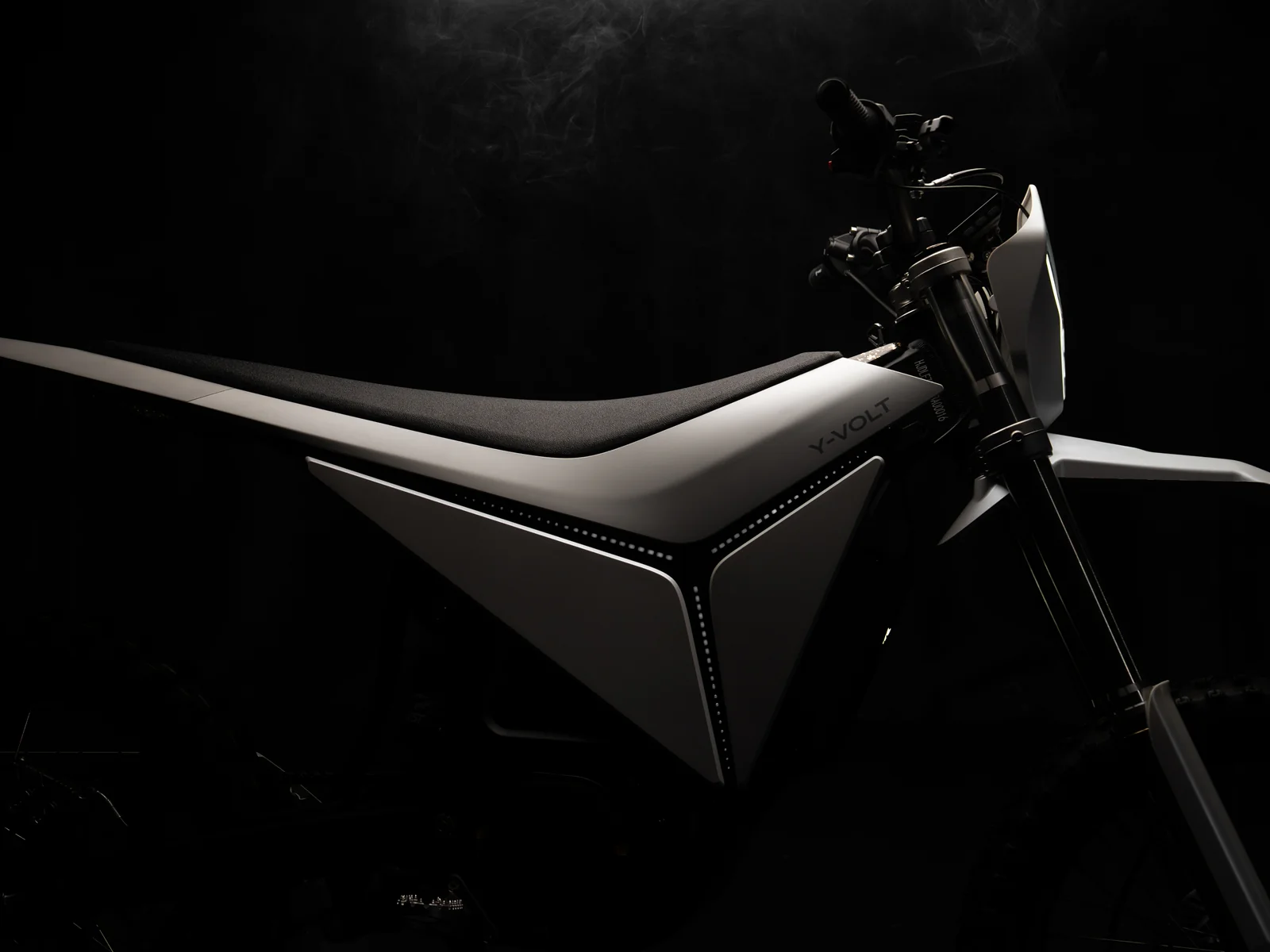

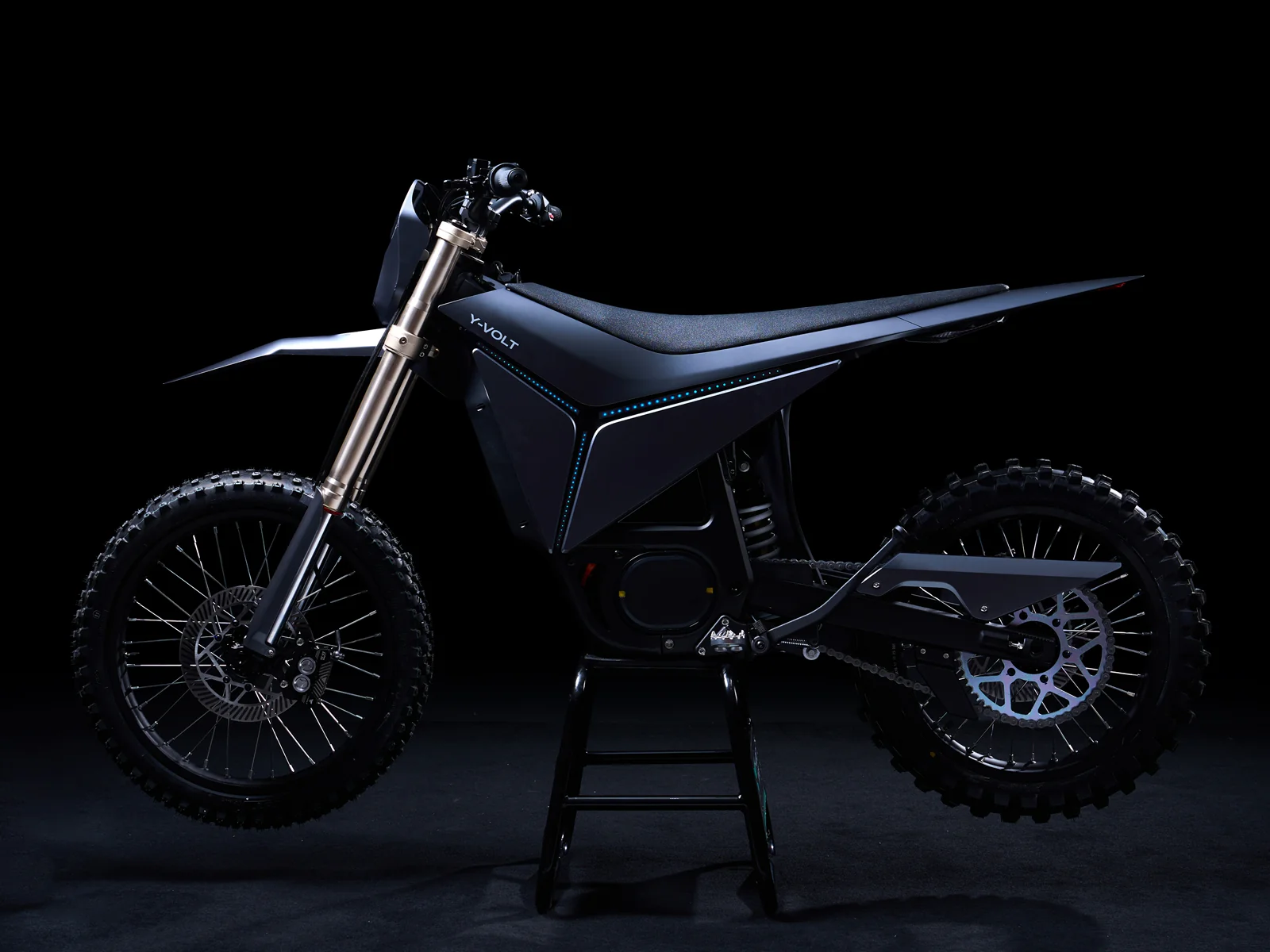

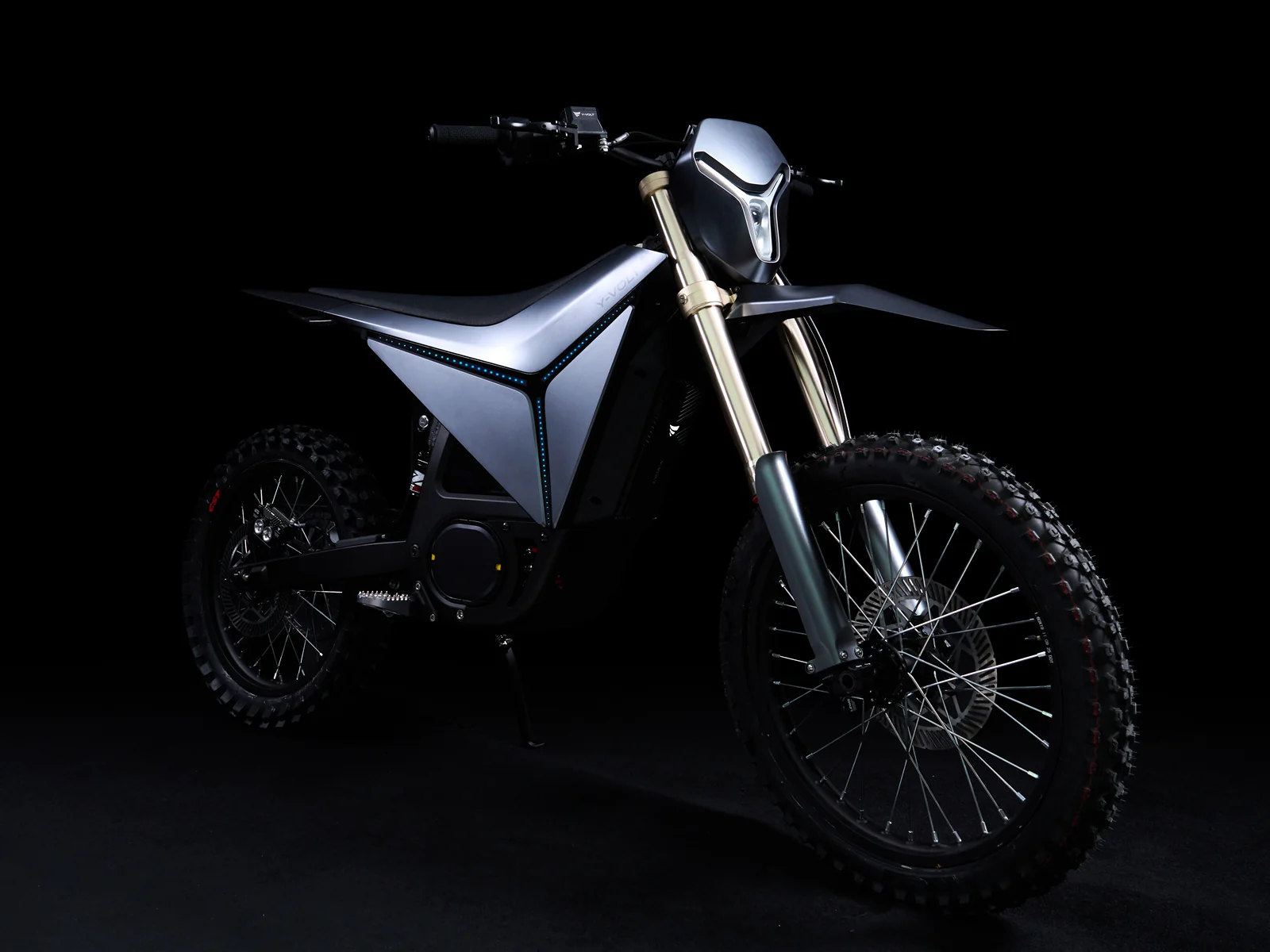

YVolt Surge V 97V Electric Dirt Bike
The YVolt Surge V is a powerful full-size electric dirt bike engineered for adult off-road riders who want high-output performance, strong torque, and advanced electric control. Built around a 97V 45Ah Samsung 50S battery system, the Surge V delivers up to 35kW peak power, 948 N·m max torque, and a listed top speed of 110 km/h.
With a forged aluminum alloy frame, air suspension, 4-piston hydraulic disc brakes, IP67 protection, NFC support, and full LED lighting, this electric dirt bike is designed for serious trail riding, off-road use, and closed-course riding environments.
Built Around a 97V High-Power Platform
The Surge V uses a 97V sine wave vector controller paired with an LPMSM motor and resolver encoder system. This setup is designed to deliver smooth throttle response, efficient power delivery, and strong output across a wide range of off-road riding conditions.
The 35kW peak power and 15kW rated power give the bike the strength needed for fast acceleration, climbing, and aggressive dirt riding. With up to 948 N·m of torque, the YVolt Surge V is positioned as a serious performance electric dirt bike rather than a lightweight commuter-style e-bike.
Performance note: Listed top speed is 110 km/h, approximately 68 mph. Actual speed and range may vary depending on rider weight, terrain, battery level, temperature, tire pressure, and riding style.
Battery, Range & Charging
The YVolt Surge V is powered by a 97V 45Ah ternary lithium battery using Samsung 50S cells. This battery configuration supports high-output riding while maintaining a practical charging time of approximately 3 hours.
The listed maximum range is 120 km, or approximately 74.6 miles, tested at 25 km/h under ideal conditions. For aggressive off-road riding, hills, high-speed use, or heavier riders, the real-world range will be lower.
Ternary lithium battery, Samsung 50S
15A
Approx. 3 hours
Full-Size Off-Road Geometry

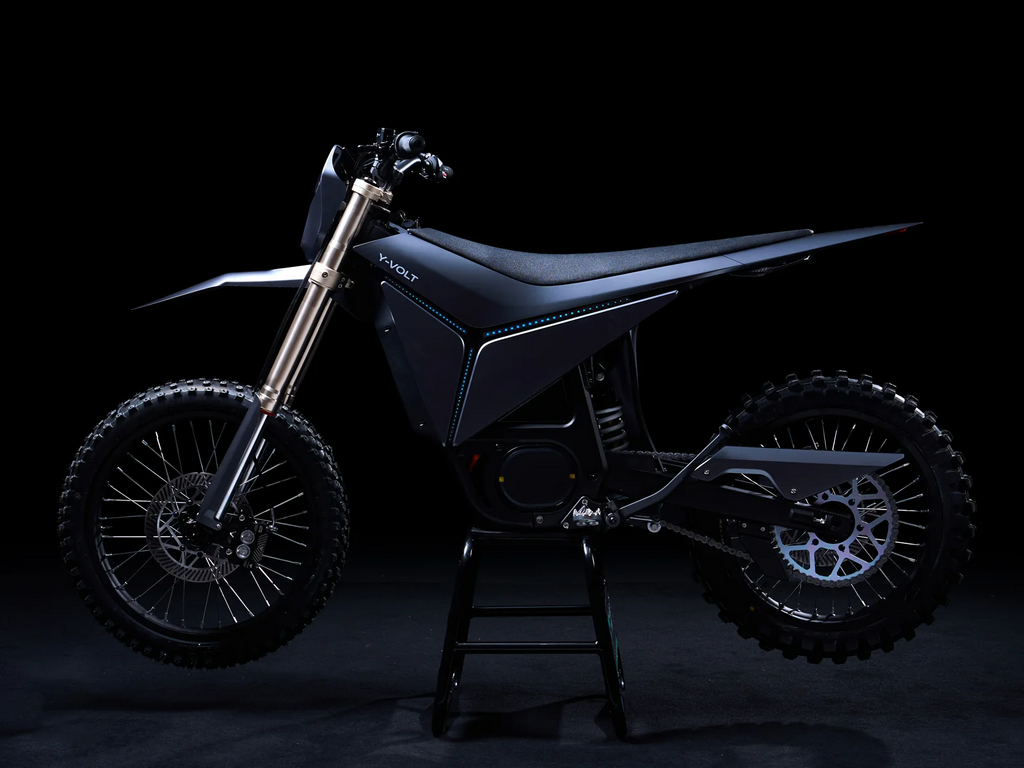

The Surge V is built with a full-size off-road stance. Its body dimensions are 2000 × 830 × 1170 mm, with a 1360 mm wheelbase, 900 mm seat height, and 300 mm ground clearance. This geometry helps the bike feel stable on uneven terrain while still remaining manageable for experienced adult riders.
The bike weighs 95 kg with battery, approximately 209 lbs, and supports a maximum load of 120 kg, approximately 265 lbs. The recommended rider age range is 18–55 years old.
Chassis, Suspension & Braking System

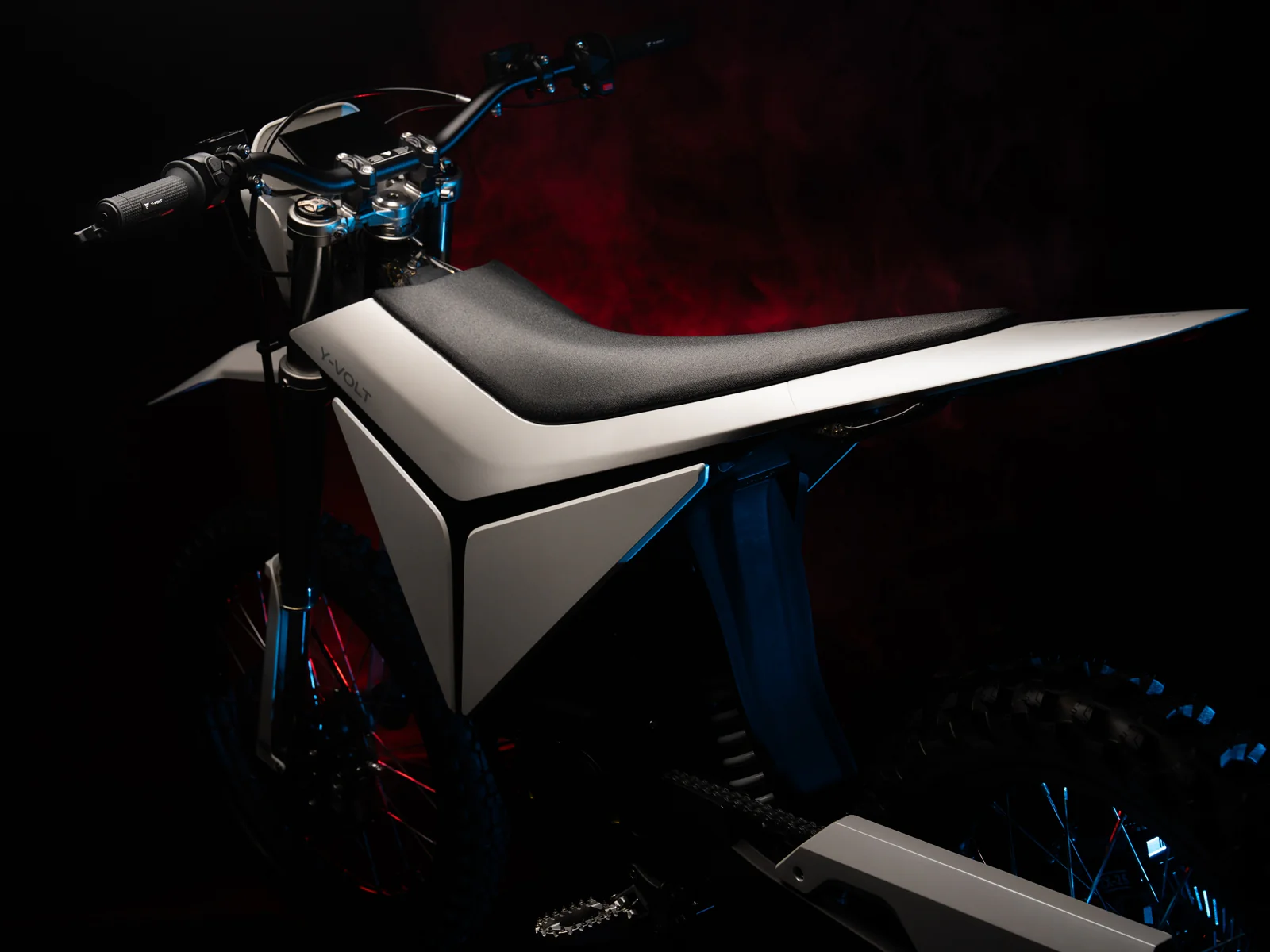

The frame is made from a triple-beam forged aluminum alloy structure, giving the bike a durable foundation for demanding off-road use. The wheel setup uses WM aluminum alloy rims with a front 80/100-19 off-road tire and a rear 100/90-18 off-road tire.

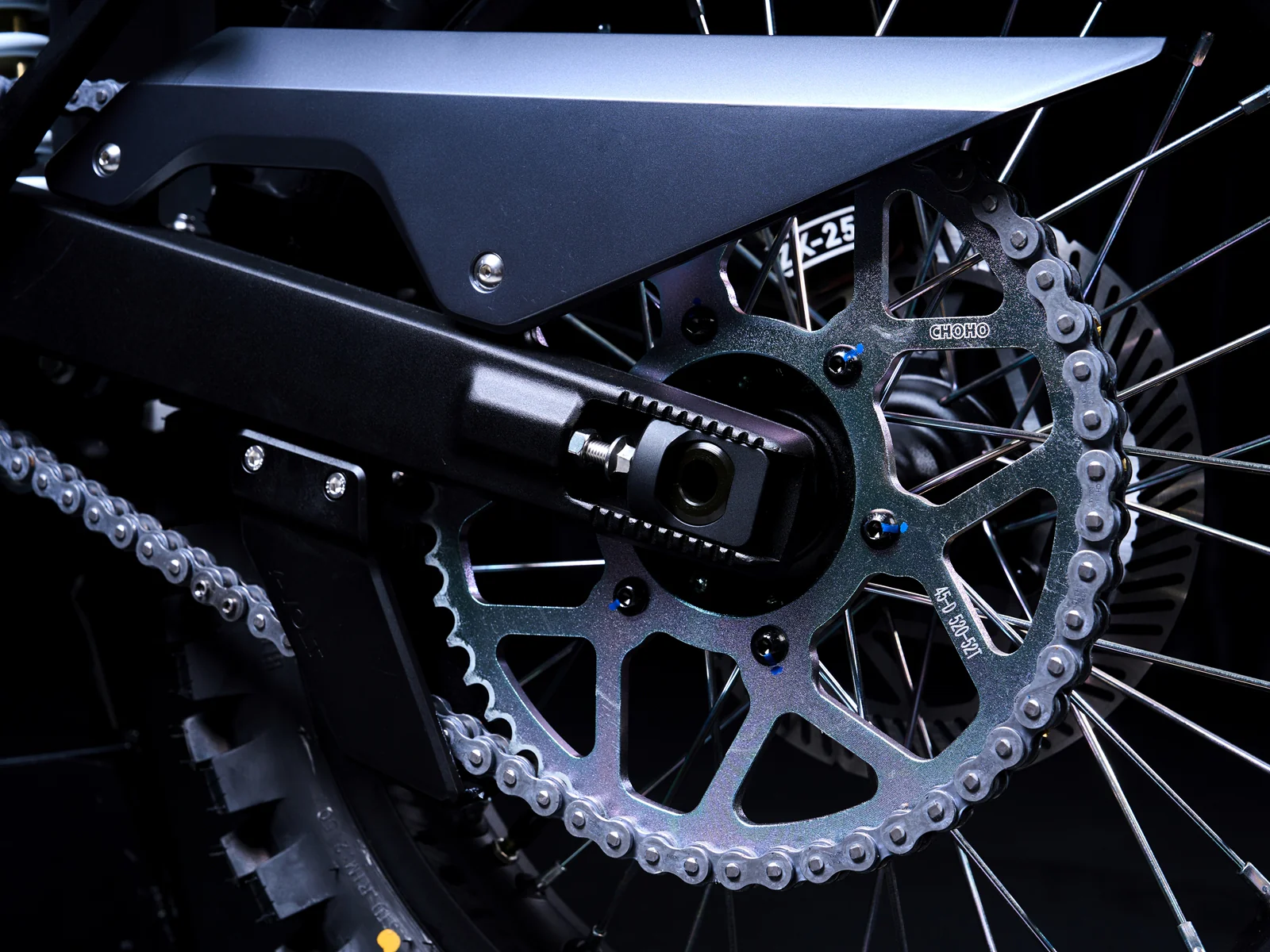

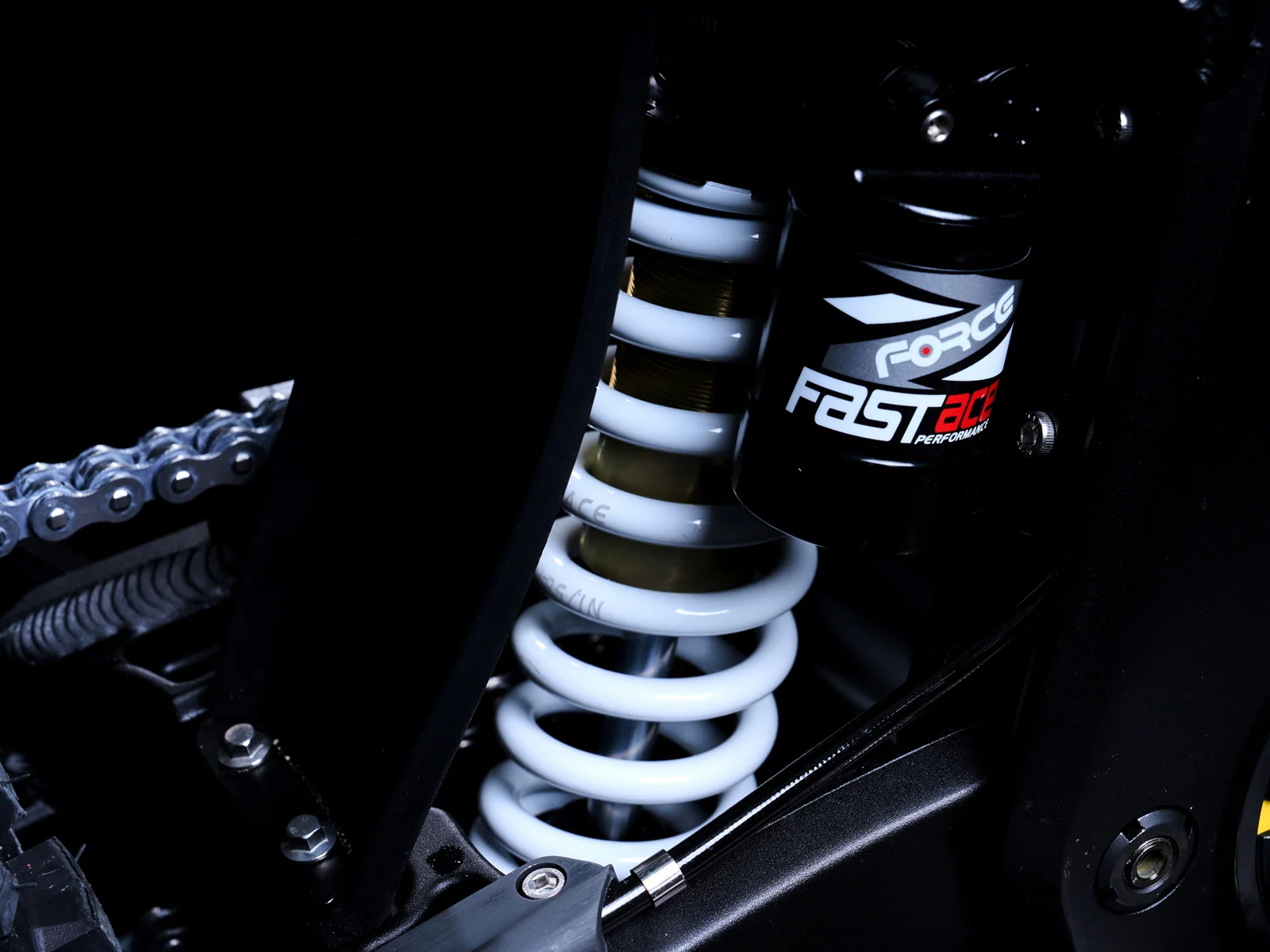

A primary gearbox and secondary chain drive system helps transfer power efficiently, while the front and rear air suspension system helps absorb trail impacts and improve rider control.

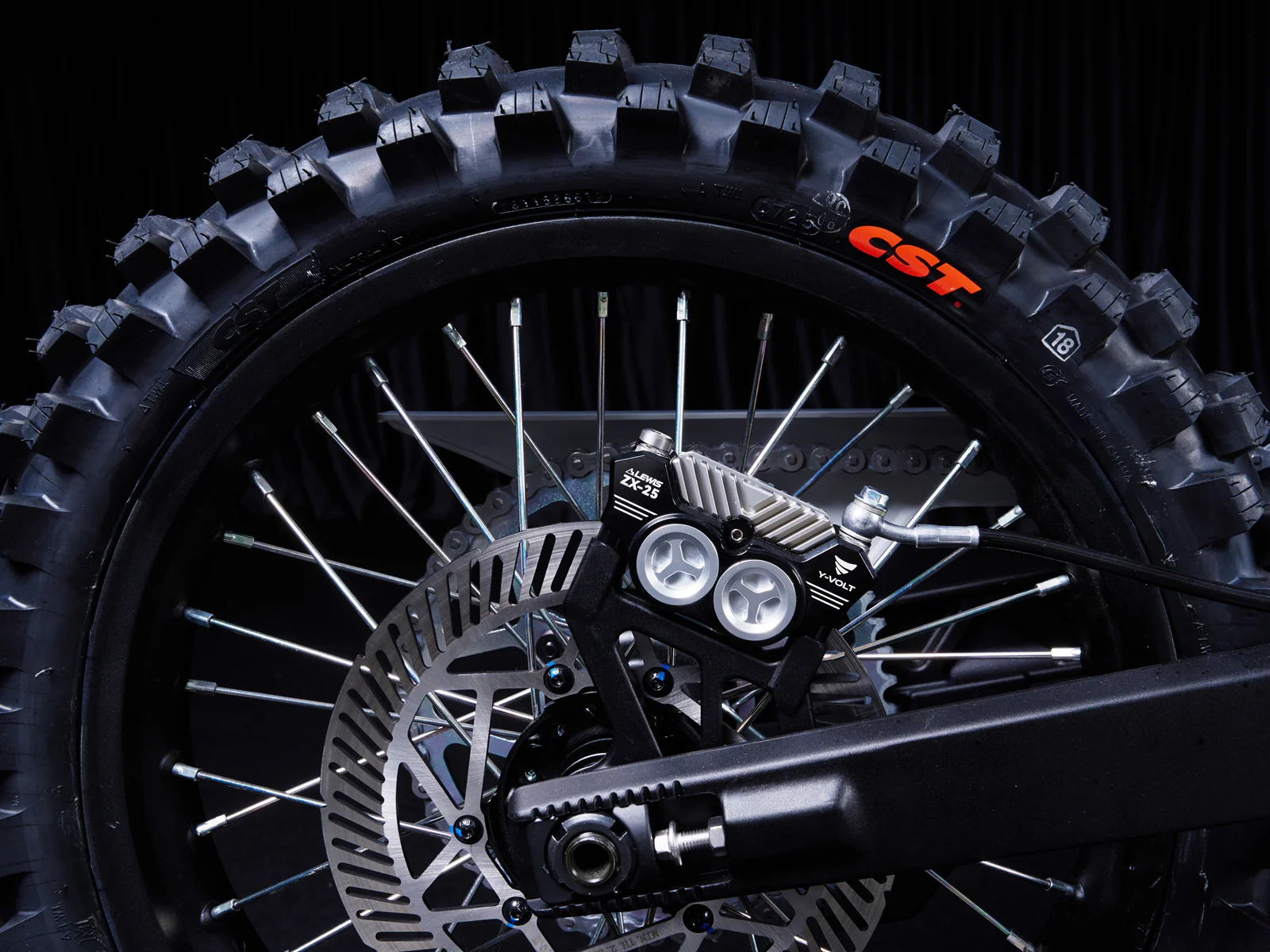

For braking, the Surge V uses 4-piston hydraulic disc brakes, giving riders stronger stopping control for dirt, trail, and mixed off-road conditions.
Smart Control & Safety Features

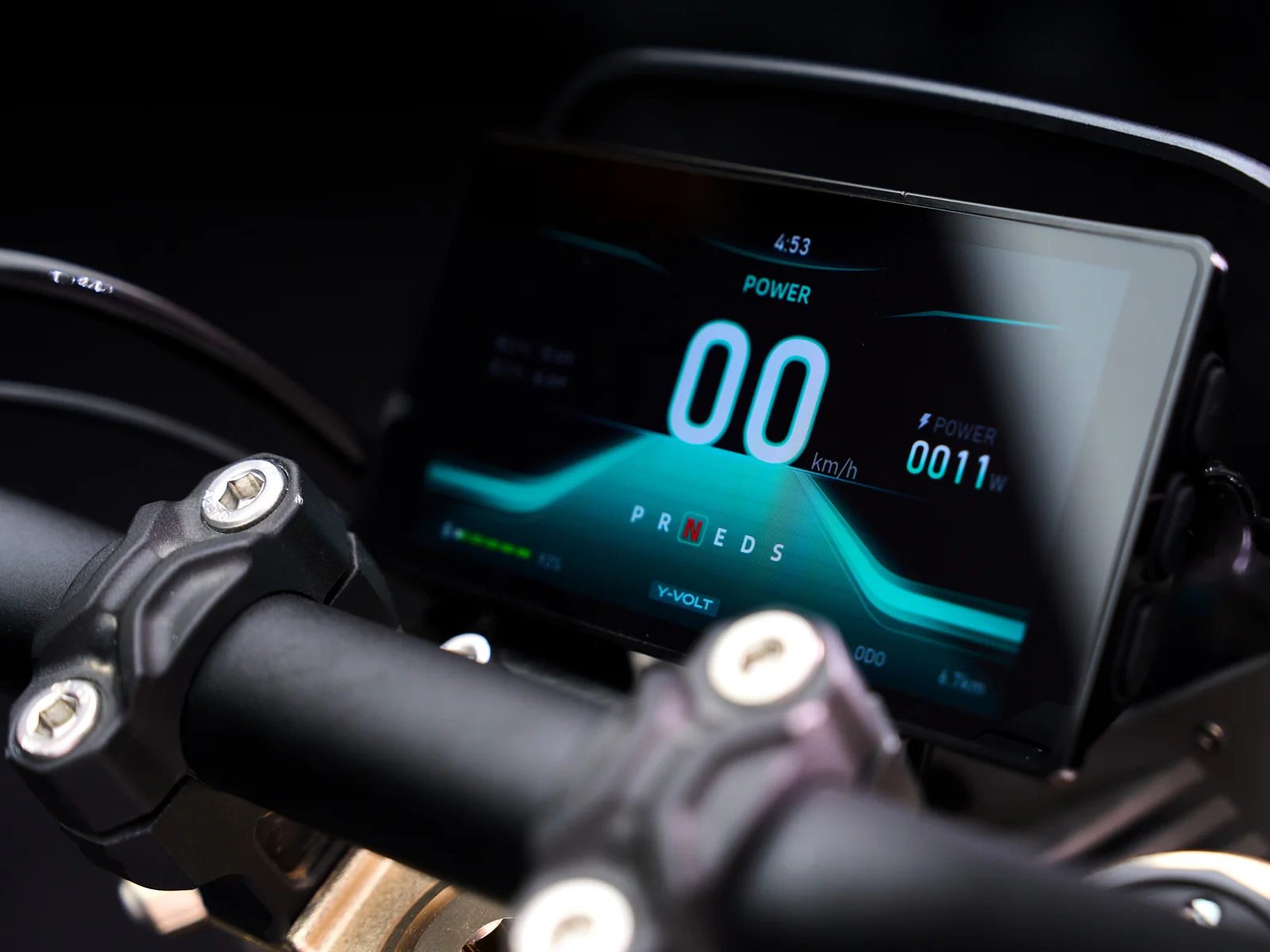

The YVolt Surge V includes a modern electronics package with RS-485 / CAN communication, an HD smart multi-function display, NFC support, a tip-over sensor, and a kickstand sensor.

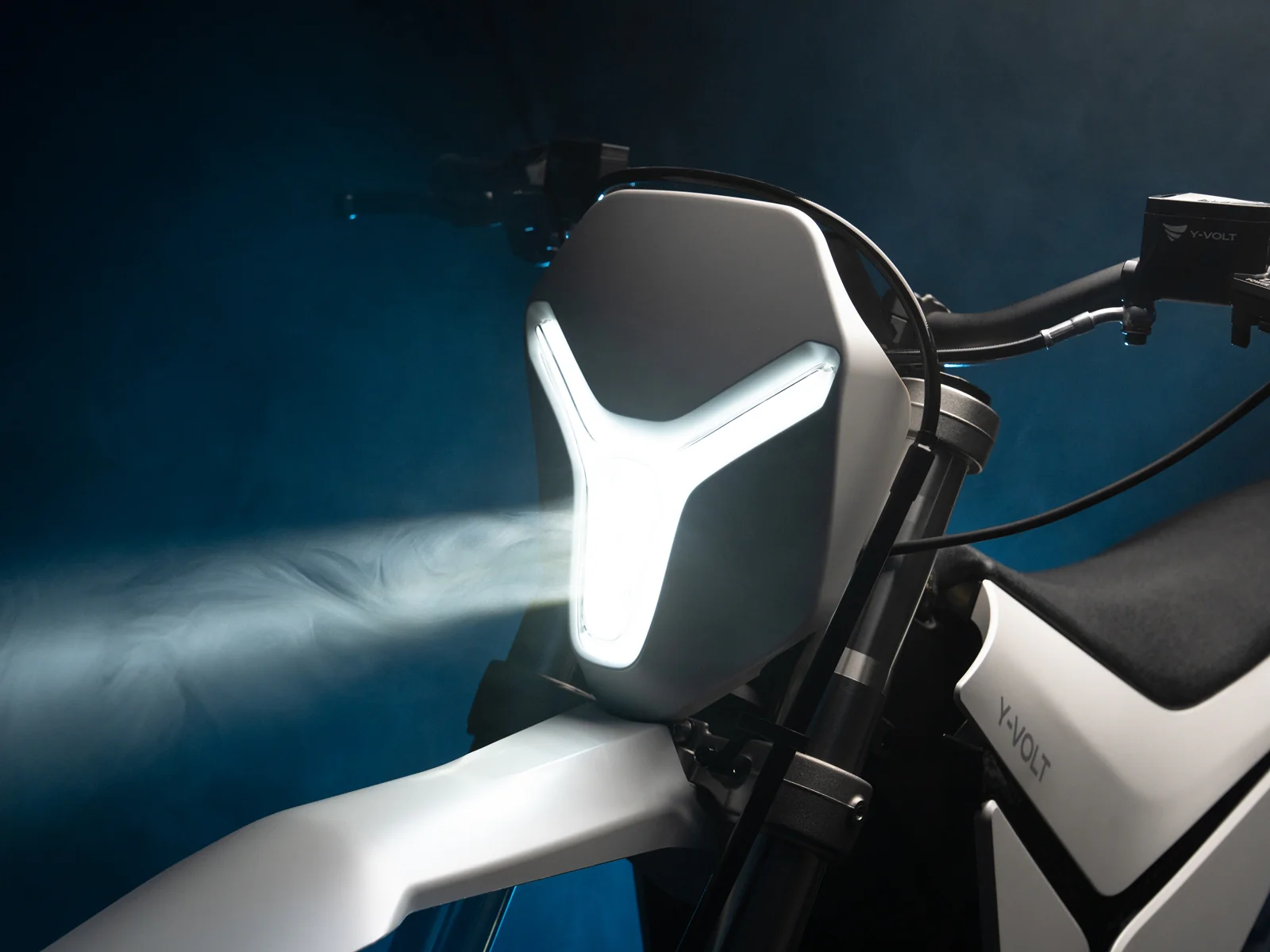

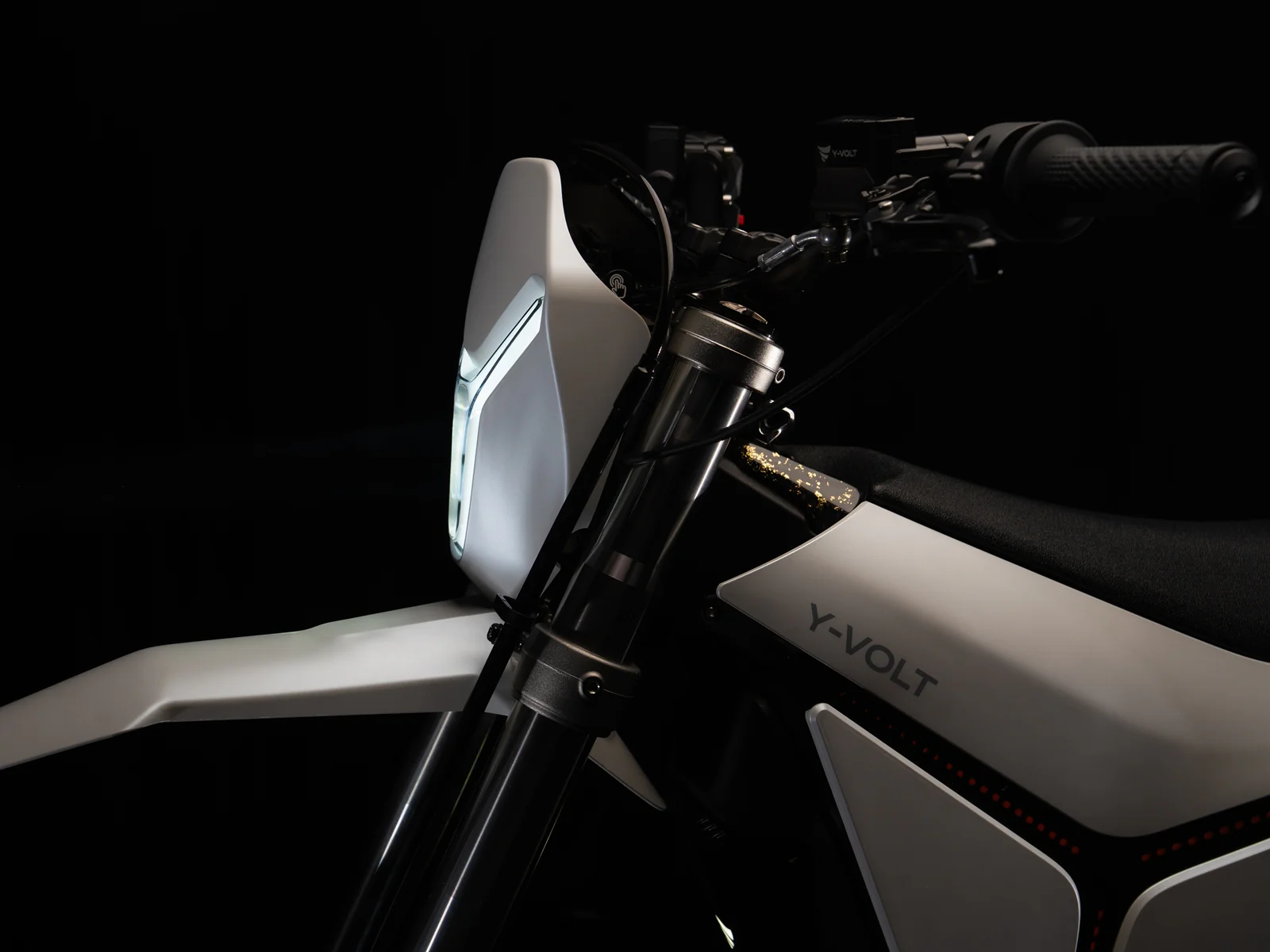

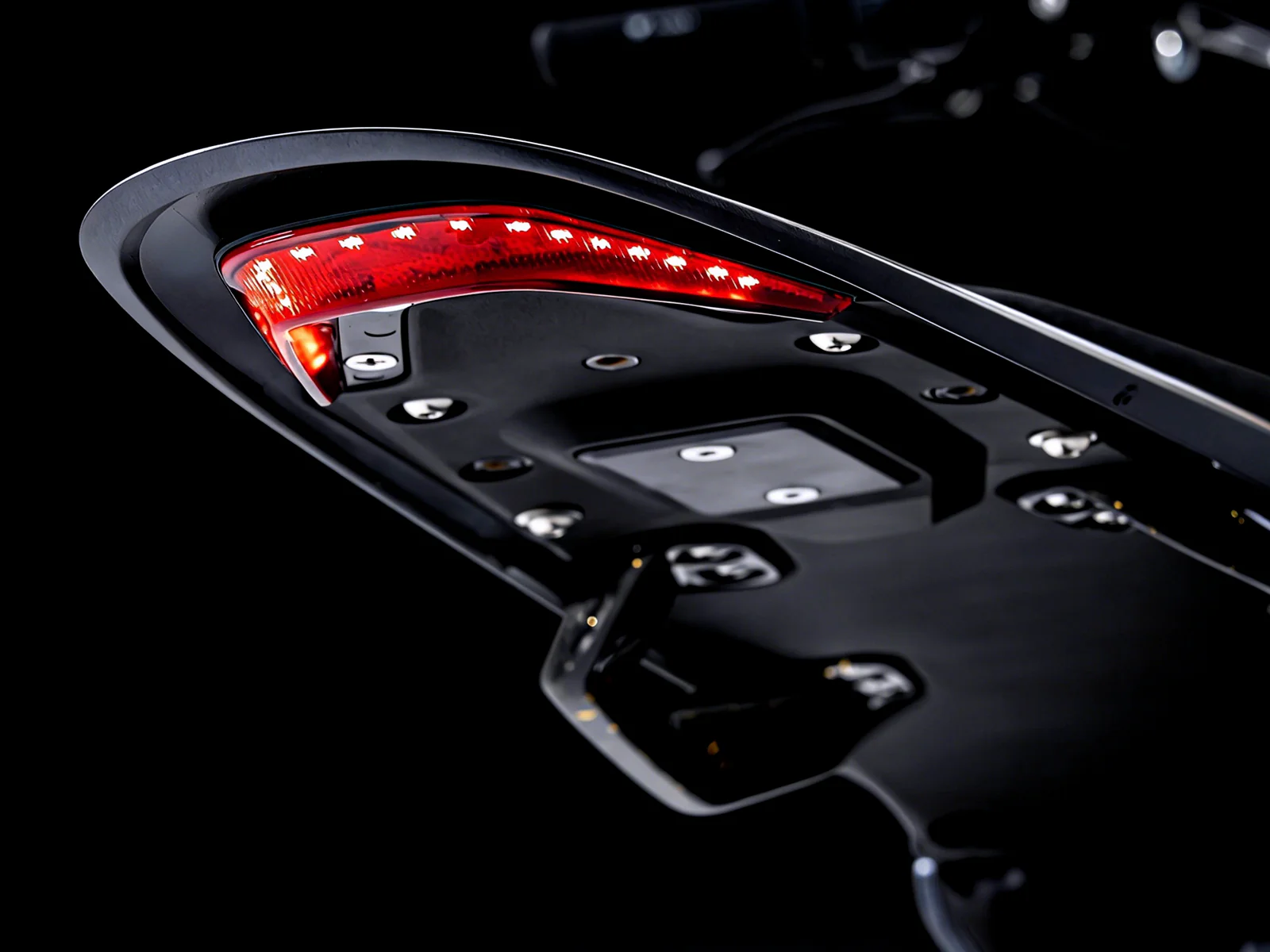

For visibility, the bike is equipped with a full LED high and low beam lighting system and also includes night riding mode.
Technical Specifications
| Category | Specification | Value |
|---|---|---|
| Basic Parameters | Size | 2000 × 830 × 1170 mm / approx. 78.7 × 32.7 × 46.1 in |
| Weight with Battery | 95 kg / approx. 209 lbs | |
| Riding Requirements | Max Load | 120 kg / approx. 265 lbs |
| Suitable Age | 18–55 years old | |
| Controller | Specification & Model | 97V Sine Wave Vector |
| Main Parameters | Wheelbase | 1360 mm / approx. 53.5 in |
| Seat Height | 900 mm / approx. 35.4 in | |
| Ground Clearance | 300 mm / approx. 11.8 in | |
| Top Speed | 110 km/h / approx. 68 mph | |
| Peak Power | 35kW / 47.6 PS | |
| Max Torque | 948 N·m / approx. 699 ft-lbs | |
| Max Range | 120 km at 25 km/h / approx. 74.6 miles at 15.5 mph | |
| Motor | Motor Type | LPMSM |
| Encoder Type | Resolver | |
| Rated Power | 15kW | |
| Rated Voltage | 97V | |
| Battery & Charger | IP Rating | IP67 |
| Battery Type | Ternary lithium battery, Samsung 50S cells | |
| Battery Capacity | 97V 45Ah | |
| Charging Current | 15A | |
| Charging Time | Approx. 3 hours | |
| Vehicle System | Frame | Triple-beam forged aluminum alloy frame |
| Rim Type | WM aluminum alloy rim | |
| Tire Type | Front 80/100-19 off-road tire / Rear 100/90-18 off-road tire | |
| Drive System | Primary gearbox, secondary chain | |
| Suspension System | Front and rear air suspension | |
| Brakes | 4-piston caliper hydraulic disc brakes | |
| Handlebar | 28.6 × 22.1 × 810 mm aluminum alloy | |
| Communication Port | RS-485 / CAN | |
| Lighting System | Full LED high and low beams | |
| Smart Features | Display Type | HD smart multi-function display |
| Tip-Over Sensor | Yes | |
| Kickstand Sensor | Yes | |
| NFC | Yes | |
| Night Riding Mode | Yes |
Key Reasons to Choose YVolt Surge V
Built for riders who want more power than standard low-voltage electric dirt bikes.
97V 45Ah ternary lithium battery system designed for strong performance.
948 N·m max torque helps provide strong climbing and trail performance.
Includes tip-over sensor, kickstand sensor, NFC, HD smart display, and night riding mode.
FAQ
How fast is the YVolt Surge V?
The listed top speed is 110 km/h, approximately 68 mph. Actual speed depends on riding conditions, rider weight, battery level, and terrain.
What is the battery specification?
The Surge V uses a 97V 45Ah ternary lithium battery with Samsung 50S cells.
What is the listed range?
The listed maximum range is 120 km, approximately 74.6 miles, measured at 25 km/h under ideal riding conditions.
Is this bike for beginners?
The YVolt Surge V is a high-power electric dirt bike. It is better suited for experienced adult riders rather than children or first-time riders.
Can it be used on public roads?
The Surge V is designed for off-road and closed-course use. Street legality depends on local laws and regulations. Always check local requirements before riding on public roads.
Disclaimer: The YVolt Surge V is intended for off-road and closed-course use. Performance figures may vary based on terrain, rider weight, riding style, battery condition, temperature, and other conditions. Always wear approved protective gear and follow local laws before riding.
